إضاءة TAIG1 & مستشعر للأشعة فوق البنفسجية

نظرة عامة على المنتج

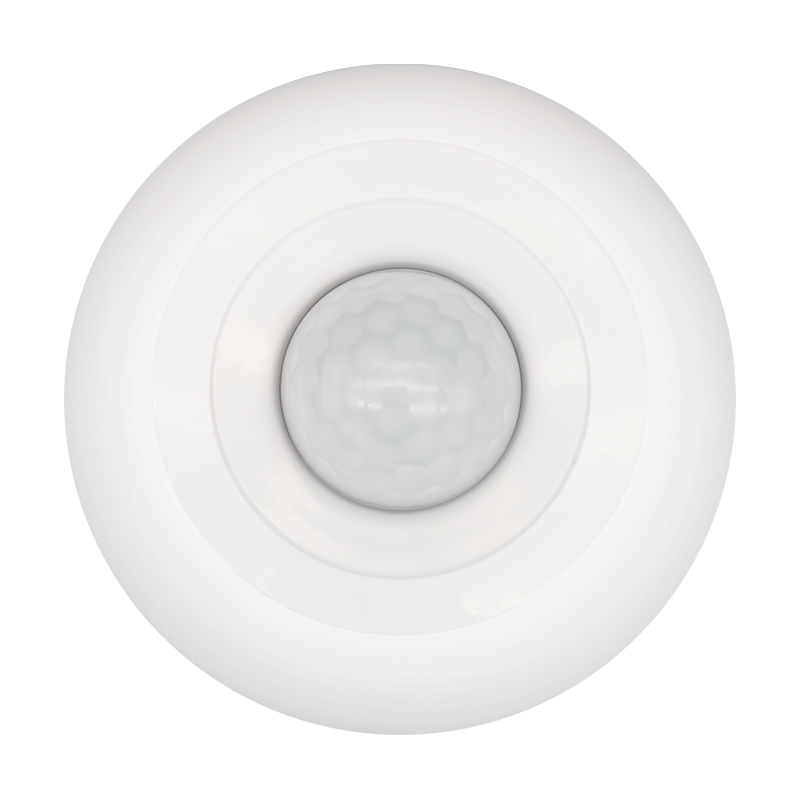

TAIAG1 is a ceiling‑mounted illuminance and ultraviolet (UV) intensity sensor designed for indoor lighting and UV monitoring in public buildings and other indoor environments. It uses a high‑sensitivity photoelectric detector to convert visible light and UV radiation into precise electrical signals, allowing real‑time measurement of lux and UV index. Through a wired RS485 interface (Modbus‑RTU protocol) and optional LoRa wireless communication, HYAG1 uploads data to an IoT gateway or cloud platform for smart building control, indoor lighting optimization and environmental monitoring.

تفاصيل المنتج

ميزات المنتج

Durable enclosure and long service life.
Long‑range transmission with strong resistance to electromagnetic interference.
Supports wired RS485 (Modbus‑RTU) and optional LoRa wireless communication; integrates with IoT gateways.
Compact ceiling‑mount form factor simplifies installation.
High‑precision measurement, stable performance and fast response ensure reliable lux and UV readings.

Application Scenarios

This sensor is widely used in agriculture, forestry, public venues, healthcare facilities, warehousing and environmental monitoring. It is also suitable for smart buildings, HVAC control, indoor lighting optimization and UV safety monitoring in schools, libraries, museums, shopping malls and public bathhouses.

Product Parameters

المعلمة	Specification
Working voltage	DC 12 V
Static current	<20 أماه
درجة حرارة التشغيل	−10 °C to 60 °C
الرطوبة التشغيلية	5 %–80 % RH
Illuminance range	0–65,535 lx
UV intensity range	0–15 mW/cm²
UV index range	0–15
UV resolution	0.01 mW/cm²
UV wavelength range	240–370 nm
دقة القياس (illuminance)	±4 %
دقة القياس (UV)	±10 % FS
Communication interface	RS485 (Modbus‑RTU protocol)
Indicator LEDs	الصمام الأحمر: constant when powered; Blue LED: flashes during normal operation
Transmission options	RS485 or LoRa (optional)
